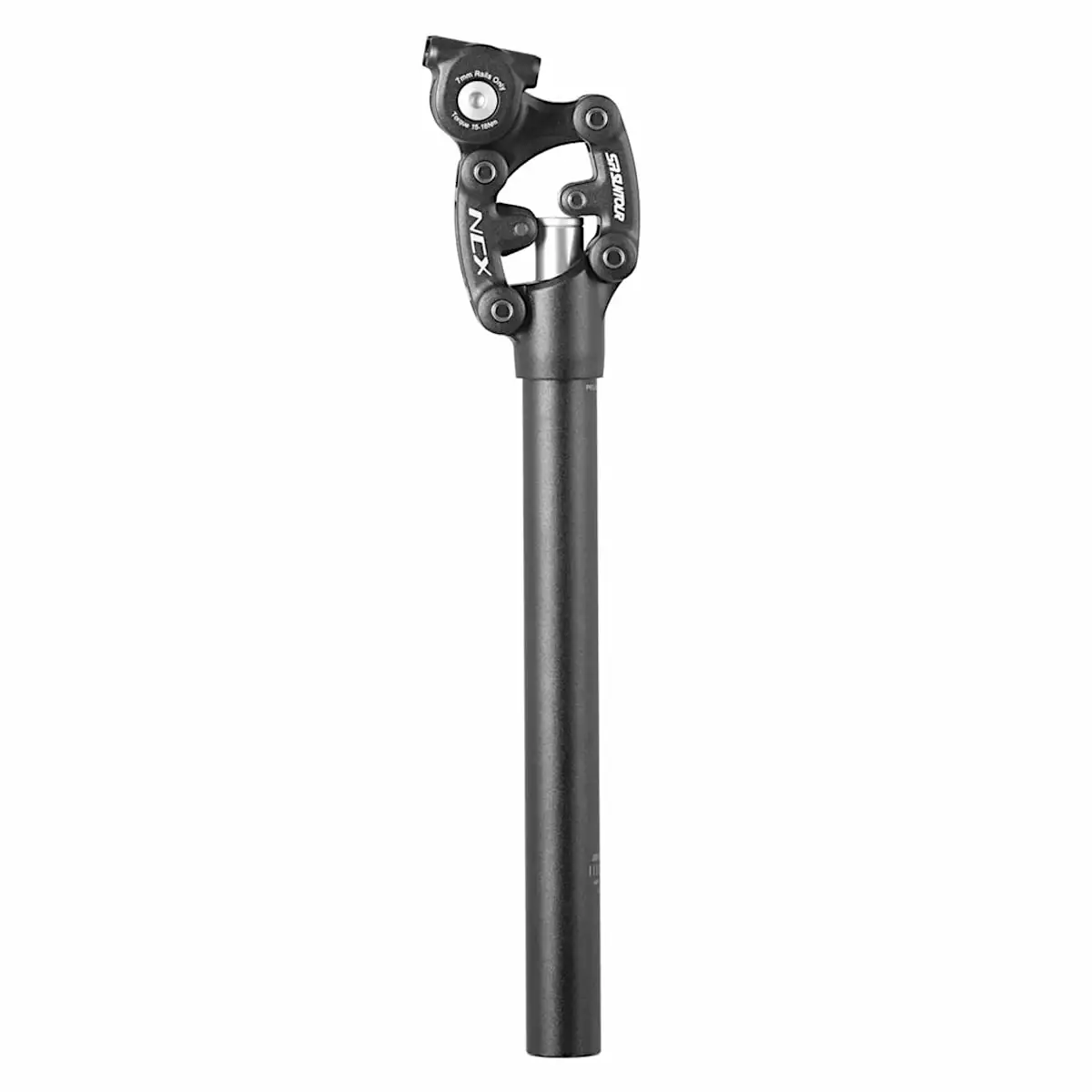

SUNTOUR SP12-NCX Suspension Seat Post

The proven parallel linkage technology has also found its way to this seat post. As opposed to many other suspension seat posts however, the Suntour suspension moves down as well as back. This means that the seat height doesn’t change so much. In contrast to the previous SP8-NCX model, the SP12-NCX has a different saddle mount and rust-free steel bush.

• Material: aluminium
• Parallel linkage design
• Stainless steel bushing
• For saddles with 7×7 mm round rails
• Travel: approx. 48 mm
• Rear offset: approx. 25 mm
• Stack height up to saddle rail: approx. 110 mm
• Total length: approx. 350 / 400 mm
• Minimum insertion depth: 65 mm
• Steel coil adjustable over preload
• For a rider weight of 65-95 kg
• Weight for Ø 27.2 mm: approx. 779 g
• Available in Ø 27.2 or 31.6 mm

Optional accessories:
• Suntour spring element (product code: 2251780)
• Suntour Protector for suspension seat post (product code: 1926963
• Brunox Deo Spray for lubrication (product code: 1815108)

Please note: Not suitable for mounting saddles with oval shaped saddle rails. Applicable saddles in the program are noted.

In the seating comfort test from the German magazine RADtouren Genuss Spezial 2020, the Suntour SP12-NCX (27.2/350) received 33 points and a mark of 1.8, with the following conclusion (translated from German):

“The Suntour SP12 gives the saddle a generous 5 cm room to move. On the rough test stretch, the seat post cradles the rider comfortably over the course. The spring quickly resets, but the rebound speed is well absorbed with light springiness. The saddle angle however can not be precisely adjusted with the roughly cut clamp.”
