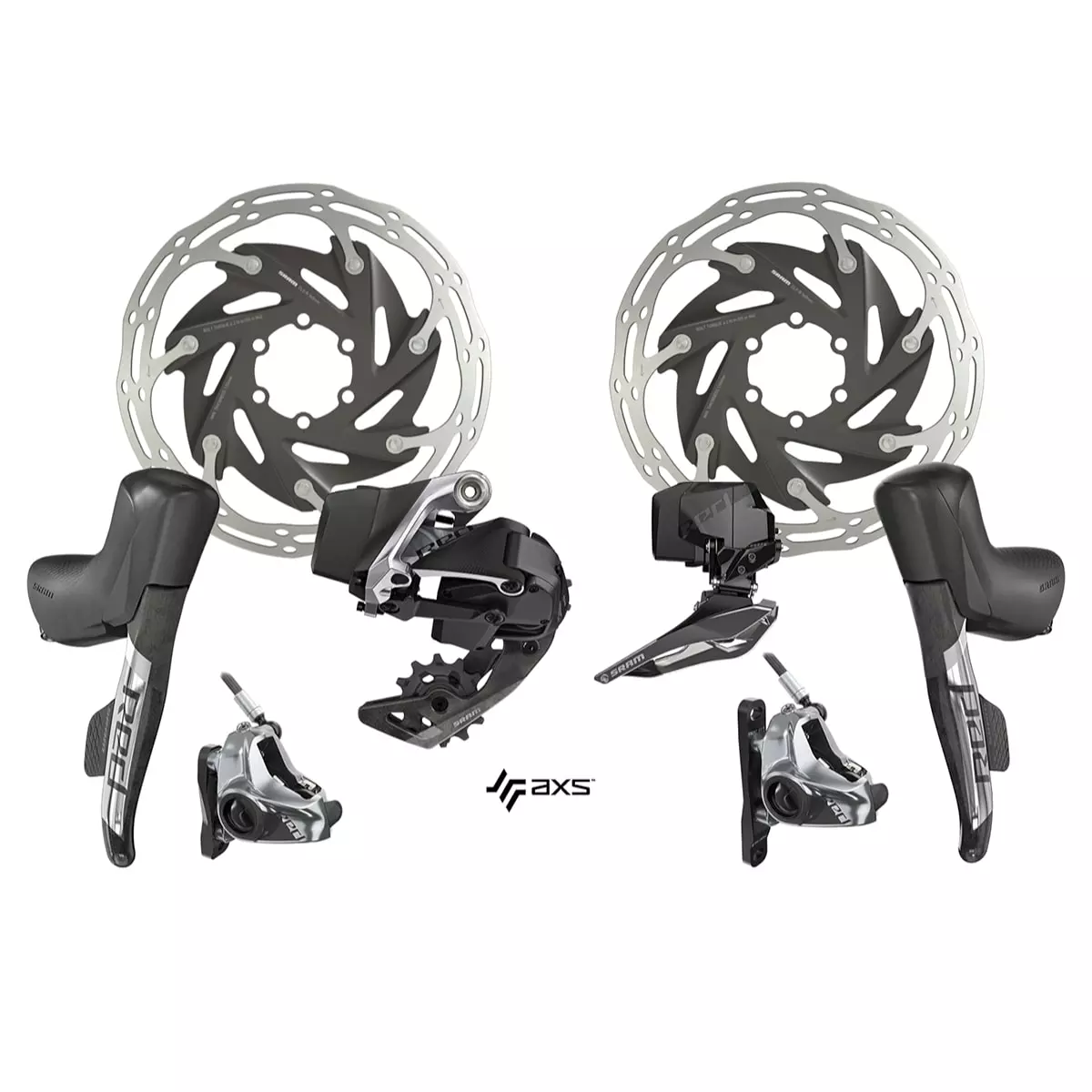

SRAM RED® ETap AXS™ HRD Shift-Brake Control 2×12 For Disc Brakes IS 6-Hole

For SRAM, the electronic RED® eTap AXS™ shifting system is no less than a revolution. Maximum performance combined with ultimate flexibility were part of the engineers’ requirement specification. For the first time in the history of the US-American component manufacturer, a road bike shifting system has a total of 12 sprockets at the rear wheel. Thanks to the X-Range™ technology, the RED® eTap AXS™ not only impresses with smoother shifting, but also with an improved gear ratio that helps combine small gear steps with a wide range of gears in a clever way. Yet, the proven and intuitive eTap shifting logic remained unchanged. In addition, SRAM now offers the possibility to connect the shifting system to the AXS™ app and to customize it. You can now choose for example between a sequential and a compensating shifting mode as well as determine the number of shifted sprockets in the Multishift mode. Moreover the electronic integration platform allows you to monitor the battery status, adjust the controllers, receive maintenance reminders and update the firmware. In short – with the RED eTap AXS™ by SRAM, ambitious cyclists will finally enter the digital age!

Details:
• Completely wireless, electronic road bike shifting system
• For 2×12 speed configuration
• For disc brakes
• All electronic components in one package (read what’s in the box below)
• Part of SRAM’s AXS™ integration platform
• X-Range™ technology
• Orbit™ technology

HRD Brake/Shift Levers incl. Disc Brake

It’s time to shift forward.
SRAM RED® eTap AXS™ shift and brake levers are your control centre that wirelessly connects you with your road bike. As in a race car, you can change gears quickly and at the touch of a button. Thanks to the intuitive eTap® shift logic, both shift paddles control the rear derailleur. The right lever changes up at the back, the left lever changes down. Of course, you can additionally adjust shifting behaviour and assignments to suit your personal preferences by using the AXS™ app. Thus you’ll shift more, with less effort and spend less time doing it.
The hydraulic HydroHC™ disc brakes of the RED® eTap AXS™ deliver exactly the braking power you need in all conditions. This promises unlimited riding pleasure thanks to reliability and performance. The FlatMount brake calipers with a two-piece design offer great braking power and precise modulation, while perfectly blending in with the elegant and clean look of your bike.

Details:
• For SRAM eTap AXS™ 1×12 and 2×12 systems
• For hydraulic road bike disc brakes
• Compatible with SRAM AXS™ for easy customisation
• Easy and intuitive eTap® shift logic
• Large and ergonomic controllers
• Individual lever reach adjustment with Reach Adjust™
• Bite point adjustment with Contact Point Adjustment™
• Bleeding Edge™ technology for fast, easy bleeding
• Material brake levers: carbon
• Material shift levers: composite
• Disc brake caliper with FlatMount standard
• Material brake calipers: aluminium
• Brake pads: organic
• Brake hose length: front: approx. 950 mm, rear: approx. 1800 mm
• Battery type: CR 2032 (round cell battery)
• Run up to two Blips™ per side
• Weight: approx. 736 g

Brake discs

SRAM’s Centerline XR (CLX-R) brake discs were developed together with the SRAM eTap AXS™ drivetrains and are specifically designed to meet the needs of ambitious and professional road cyclists. Therefore, they guarantee outstanding braking performance and minimum noise

Details:
• Aerodynamic design, optimized for use on road bikes
• Brake disc Ø: 160 mm
• Two-piece design for a low weight
• 6-bolt brake disc mount
• Weight: approx. 162 g (piece)

Rear derailleur

The RED® eTap AXS™ rear derailleur is an interactive masterpiece featuring a long list of top technologies for more silent and more efficient road shifting. The single rear derailleur covers all possible gear combinations (including single speed and double speed).
A particular highlight is the SRAM Orbit™ technology. A rear derailleur movement control mechanism that uses a special silicone fluid as part of the damping system. Compared to standard roller bearing clutch mechanisms, this technology creates no additional resistance at the spring of the rear derailleur. This allows for smoother and faster shifting. Besides, the fluid damper reliably maintains chain tension while riding for maximum chain control even in rough terrain.

Details:
• Compatible with SRAM eTap AXS™ 12-speed
• Suitable for all gearing combinations
• Compatible with SRAM AXS™ for easy customisation
• Improved motor and signal path for faster shifting
• Orbit™ chain management for a smooth and safe ride
• Larger X-SYNC™ pulleys with ceramic bearings for high durability and maximum performance
• Compatible with current eTap® batteries
• Material: aluminium/carbon/titanium
• Max. sprocket size: 33 teeth
• Capacity: 36 teeth
• Battery type: eTap® battery
• Weight: approx. 303 g (incl. battery)

Front derailleur

The SRAM RED® eTap AXS™ front derailleur perfectly blends in with the elegant and clean look of the wireless high-end groupset. The proven SRAM YAW™ technology eliminates the need for shifter trim, while the cage profile has been optimized for use with RED® eTap AXS™ chainrings to guarantee fast and accurate gear shifts and provide more tyre clearance.

Details:
• Compatible with SRAM eTap AXS™ 12-speed
• Compatible with SRAM AXS™ for easy customisation
• Elegant and aerodynamic design for more tyre clearance
• YAW™ technology to eliminate the need for shifter trim
• For braze-on socket
• For a large chainring with 46-50 teeth, capacity: 13 teeth
• For max. tyre width: 42 mm (measured width of 700 C tyres)
• Material: aluminium/steel/composite
• Battery type: eTap® battery (compatible with current eTap® batteries)
• Weight: approx. 170 g (incl. battery)

Life and Range

Battery charge indicator on the component itself:
• Green LED: 100% – 25%
• Red LED: 25% – 15%
• Flashing red light: 15%-0%

Battery life with battery fully charged:
• SRAM RED® eTap AXS™ shift/brake lever (CR 2032 battery): approx. 2 years
• SRAM FORCE® eTap AXS™ rear and front derailleur: approx. 60 hrs of actual riding time

Tip:
The same power unit is interchangeable between front and rear derailleurs. Given the increased number of gear shifts at the rear, the battery runs low earlier when used in a rear derailleur. By replacing the batteries, you can increase the range or compensate for an empty battery on the go.

In the box:
• SRAM RED® eTap AXS™ HRD shift/brake levers for left and right side incl. disc brake caliper, hose and batteries (CR 2032)
• 1 SRAM RED® eTap AXS™ rear derailleur
• 1 SRAM RED® eTap AXS™ front derailleur
• 2 SRAM Centerline XR disc rotors 160 mm, 6-bolt brake disc mount
• 2x eTap® power units
• 1x charger
• 1x quick start guide

Tip
Other compatible SRAM RED® eTap AXS™ components:
• SRAM RED® eTap AXS™ DUB™ crankset 2×12 (product code: 2285217
• SRAM RED® eTap AXS™ DUB™ Powermeter crankset 2×12 (product code: 2285240)
• SRAM RED® XG-1290 cassette (product code: 2285216)
• SRAM eTap Blips™ (product code: 2285256)
• SRAM RED® 12-speed Flattop™ chain (product code: 2285215)
