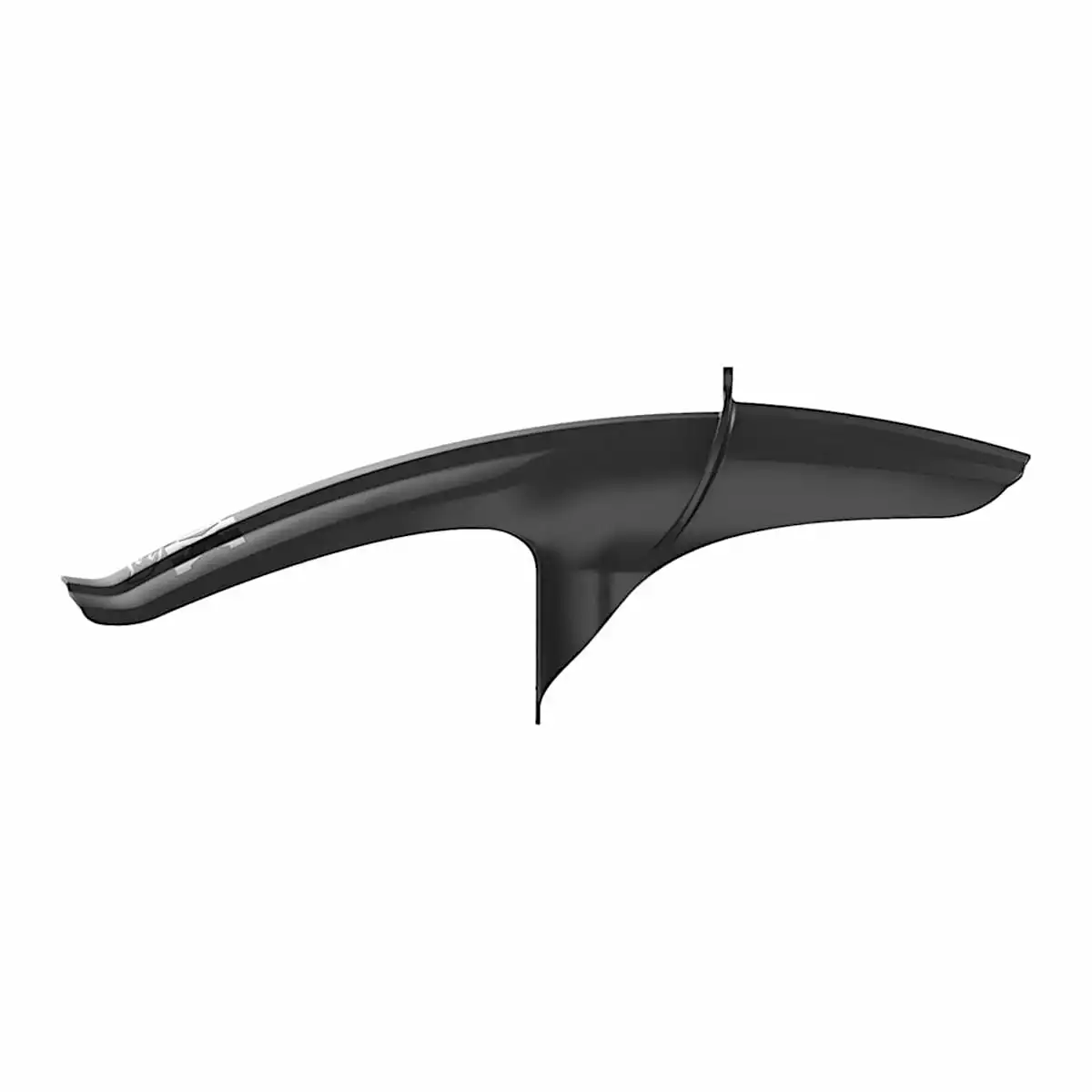

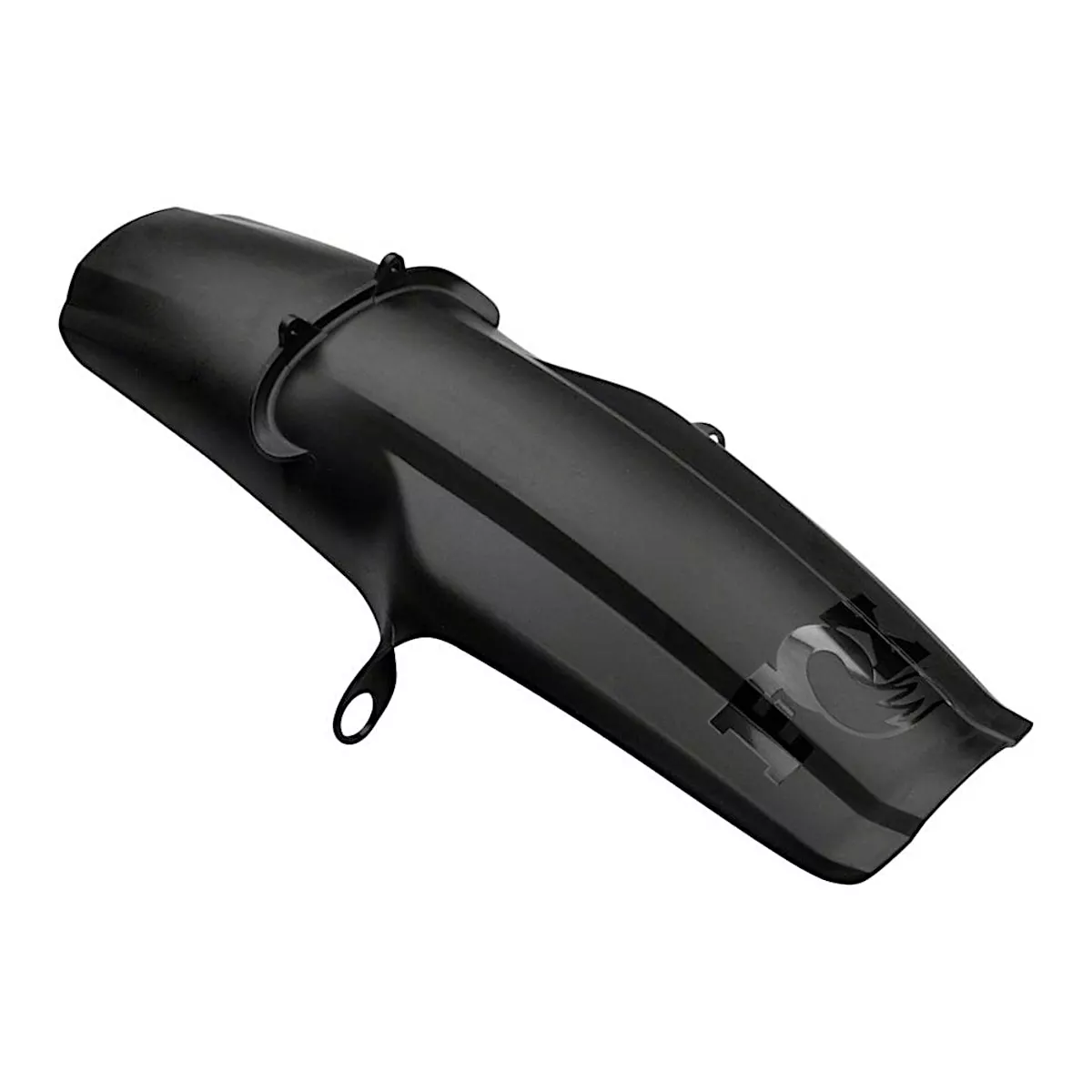

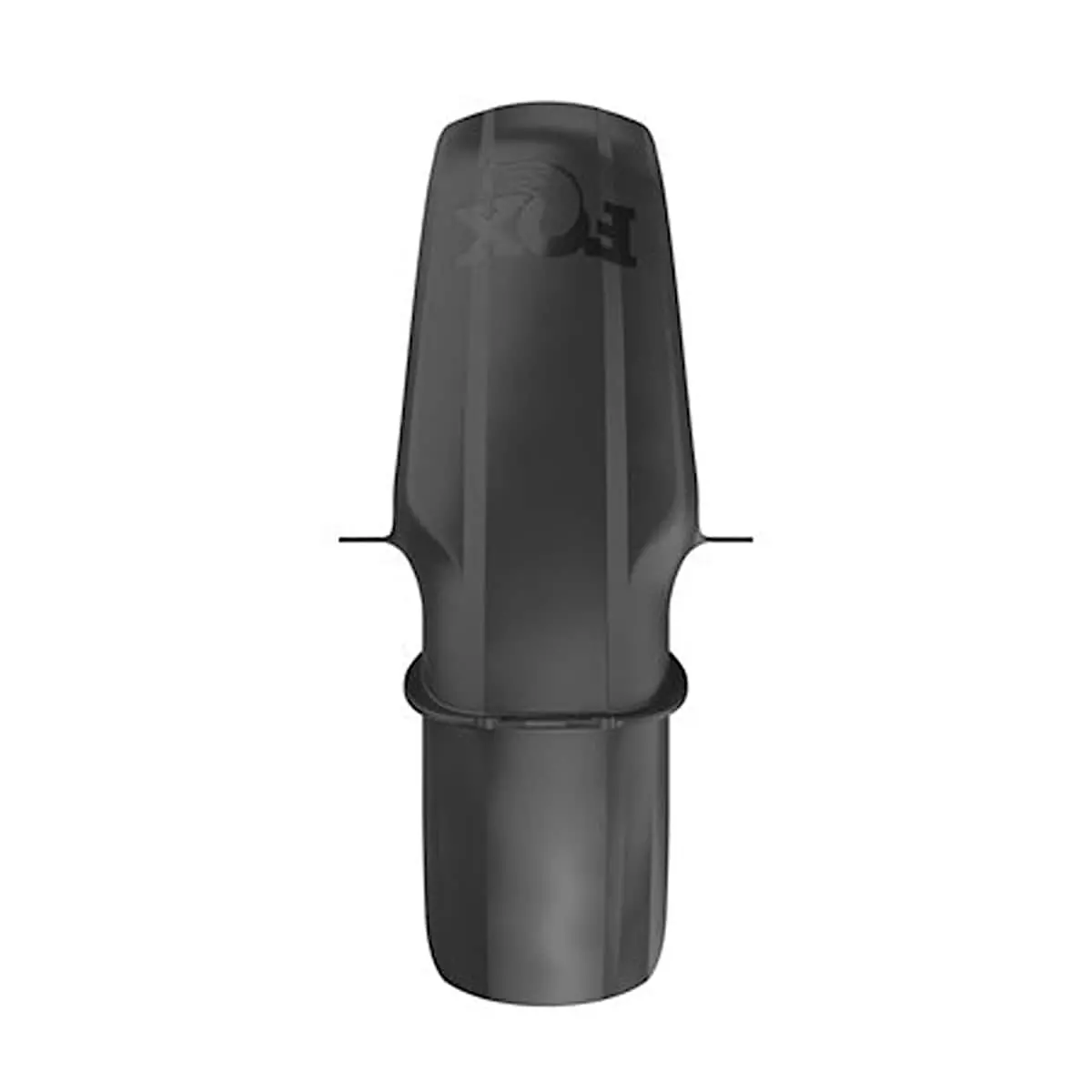

Fox Mud Guard XL For 36/38 Suspension Fork

The long, XL version of the FOX Mud Guard blocks dirt and water spray from the front wheel. This mudguard offers 85 percent more coverage than FOX’s standard mudguard. Tailor-made for 36 and 38 suspension forks from model year 2021, the mud flap can be mounted without cable ties, Velcro or clamps. With a stable 4-point attachment, the mudguard fits perfectly on the pressure release bolts of the lower fork tubes and on the back of the lower leg arch. Nothing wobbles or rattles. Built for rough terrain and visually integrated into the suspension fork, the mudguard doesn’t just protect you from getting hit with an extra portion of mud. It also protects the headset, upper tubes and seals from the wear caused by sand and water. So you can still have fun riding, even in dirty weather, and your FOX suspension fork will thank you with better durability thanks to the wheel protector.

Details:
• XL front mudguard for direct mounting
• Extra long version
• Fits FOX suspension forks from model year 2021 onwards
• Compatible with 36/38 mm upper tubes for 27.5″ and 29
• 85% larger coverage area than FOX’s compact mud guard
• Integrated design with form-fit lower leg arch mounting
• Solid 4-point screw connection
• Intended use: Allmountain, Enduro, Trail

Compatible with 36/38:
• Factory
• Factory E-Bike+
• Performance
• Performance E-Bike+
• Performance Elite
• and others

Technical details:
• Material: plastic
• Dimensions: approx. 350 x 120 mm
• Max. tyre dimensions: 27.5 x 2.7″ or 29 x 2.5″
• Weight: approx. 95 g

In the box:
• 1 FOX Mud Guard XL for the suspension fork
• 2 screws for lower leg arch

Attention:
The compact version of the FOX Mud Guard can be found under prod. code: 2323663.

Tip:
To correctly install the FOX Mud Guard correctly, take a look at these instructions at this link: https://www.ridefox.com/fox17/help.php?m=bike&id=1054
