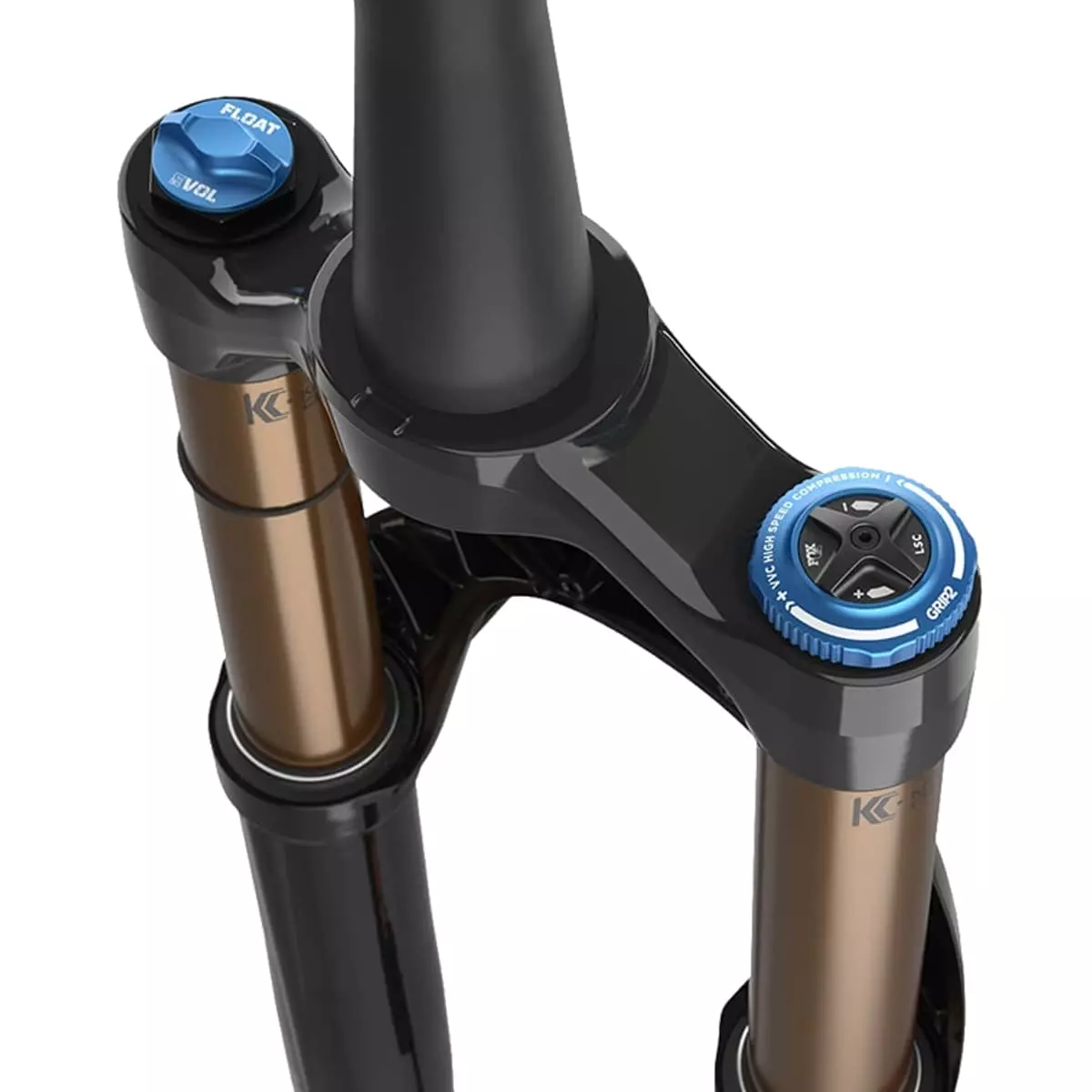

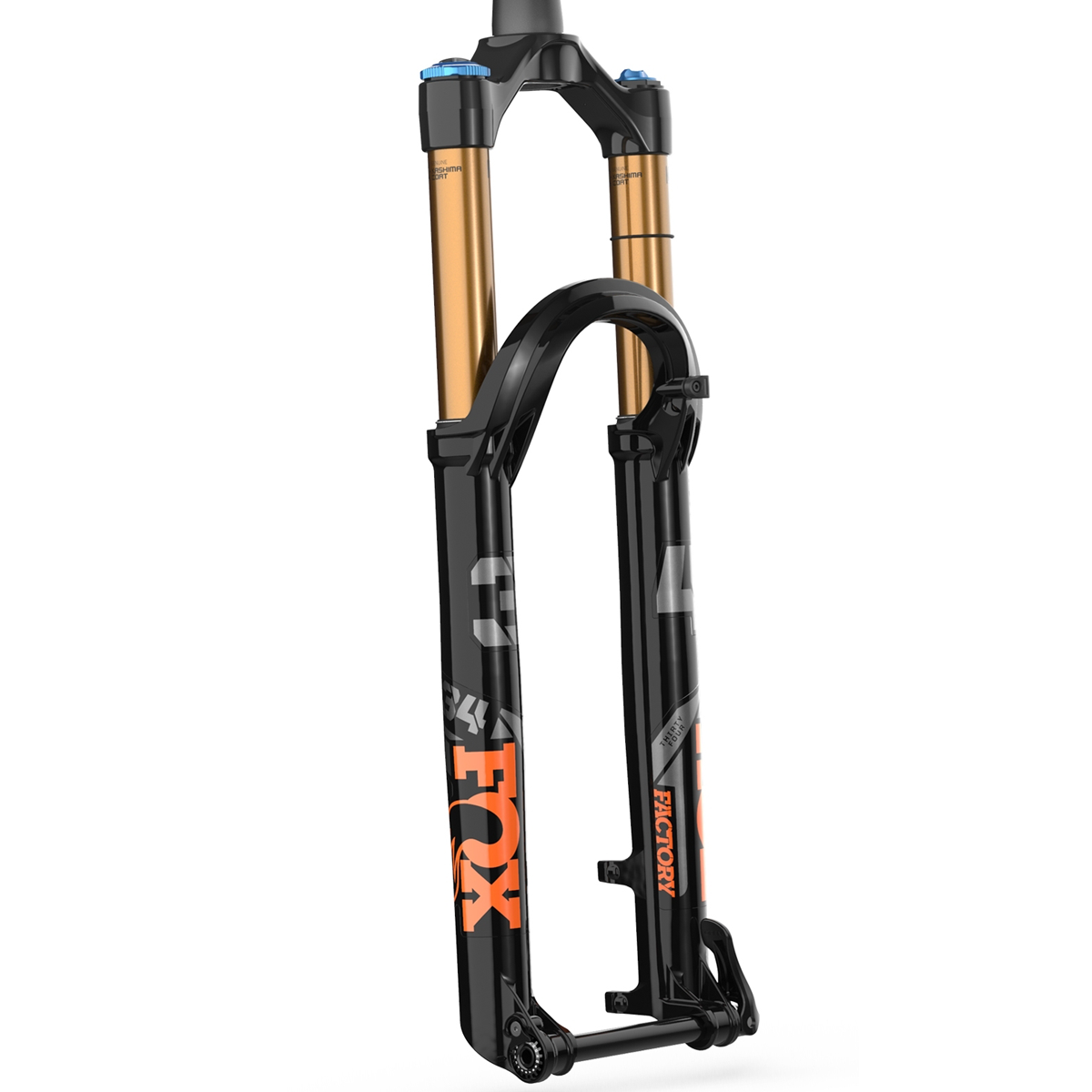

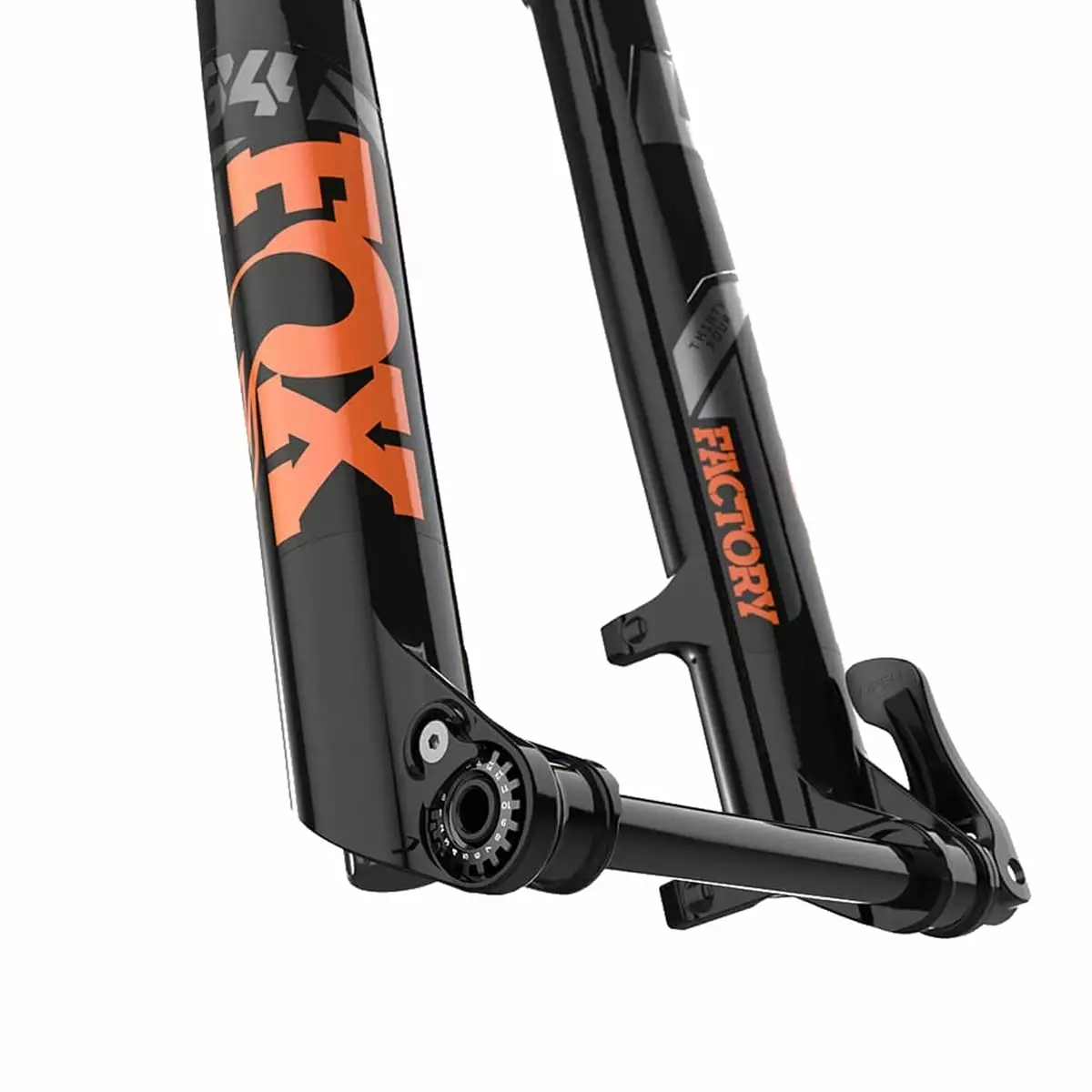

Fox 34 Factory 2022 Float GRIP2 BOOST 140 Mm MTB Suspension Fork 29”

Versatility has always been a strength of the FOX 34 Factory suspension fork. Whether in the speed-oriented cross-country and marathon sector, during aggressive trail shredding or on a strenuous all-mountain tour with endless metres of altitude – the 34 feels at home everywhere!

In addition, Kashima’s premium low-friction coating, high-quality SKF sealings and the Float air spring with EVOL technology ensure extremely sensitive responding qualities, even with small bumps. The high-end 2022 model of the 34 is once again equipped with the excellent GRIP2 damping cartridge with Variable Valve Control (VVC) for both high-speed compression and high-speed rebound, so it can easily cope with big hits on rough and blocked trails. The high-quality mountain bike fork impresses with very linear spring characteristics, a good amount of support in the middle travel range and easy adjustment to your individual needs.

In addition, the progression of the spring characteristic curve of the FOX 34 Factory can be adapted to your own needs with volume spacers. This way, the 34 offers you full riding control and traction at all times. Even if you lose the ideal line in the heat of the moment.

Details:
• Factory model
• Updated fork casting for optimised stiffness with low weight
• GRIP2 damping cartridge with VVC (Variable Valve Control) and the HSC and HSR adjustment range reduced to eight clicks
• Jutting, rounded lower leg arch to provide more space between arch and head tube
• Can be ridden with 29″ tyres with a width of up to 2.6″
• Lower Leg Channels: air or oil ducts to reduce the internal pressure and to improve
the lubrication of the upper bushings and foam rings
• Float EVOL air spring (spring rate can be adjusted with volume spacers)
• Enlarged negative chamber for more counter-hold in the mid travel range
• Brake disc compatibility up to max. Ø 230 mm

Technical details:
• Intended use: XC, Trail, All-Mountain
• Material: aluminium (fork crown/upper tubes), magnesium (lower tubes)
• Finish (upper tubes): Kashima coating (gold)
• Wheel size: 29″
• Steerer: tapered 1 1/8″ – 1.5″ (aluminium, threadless, approx. 263 mm)
• Travel: 140 mm
• Upper tube Ø: 34 mm
• Suspension: Float EVOL
• Damping: closed GRIP2 cartridge
• Adjustments: air pressure, external high- and low-speed rebound, external high- and low-speed compression
• Remote: no
• Disc brake mount: PostMount 7″ (180 mm Direct Mount)
• Max. brake disc Ø: 230 mm
• Fork length: 554 mm
• Front hub spacing: 15 x 110 mm (Boost)
• Weight: approx. 1698 g

Available with offset of:
• 44 mm
• 51 mm
Please indicate your choice.

In the box:
• 1 FOX 34 Factory GRIP2 suspension fork incl. manual
• 1 QR thru axle
• 1 (brake) hose guide
• 1 Ahead star nut
• 3 volume spacers

Attention:
Maximum tyre size 29“ x 2.6″ (when using tyres larger than 2.4”, you should check the tyre clearance with the fork fully compressed. There should be a distance of at least 6 mm to the fork crown.)
