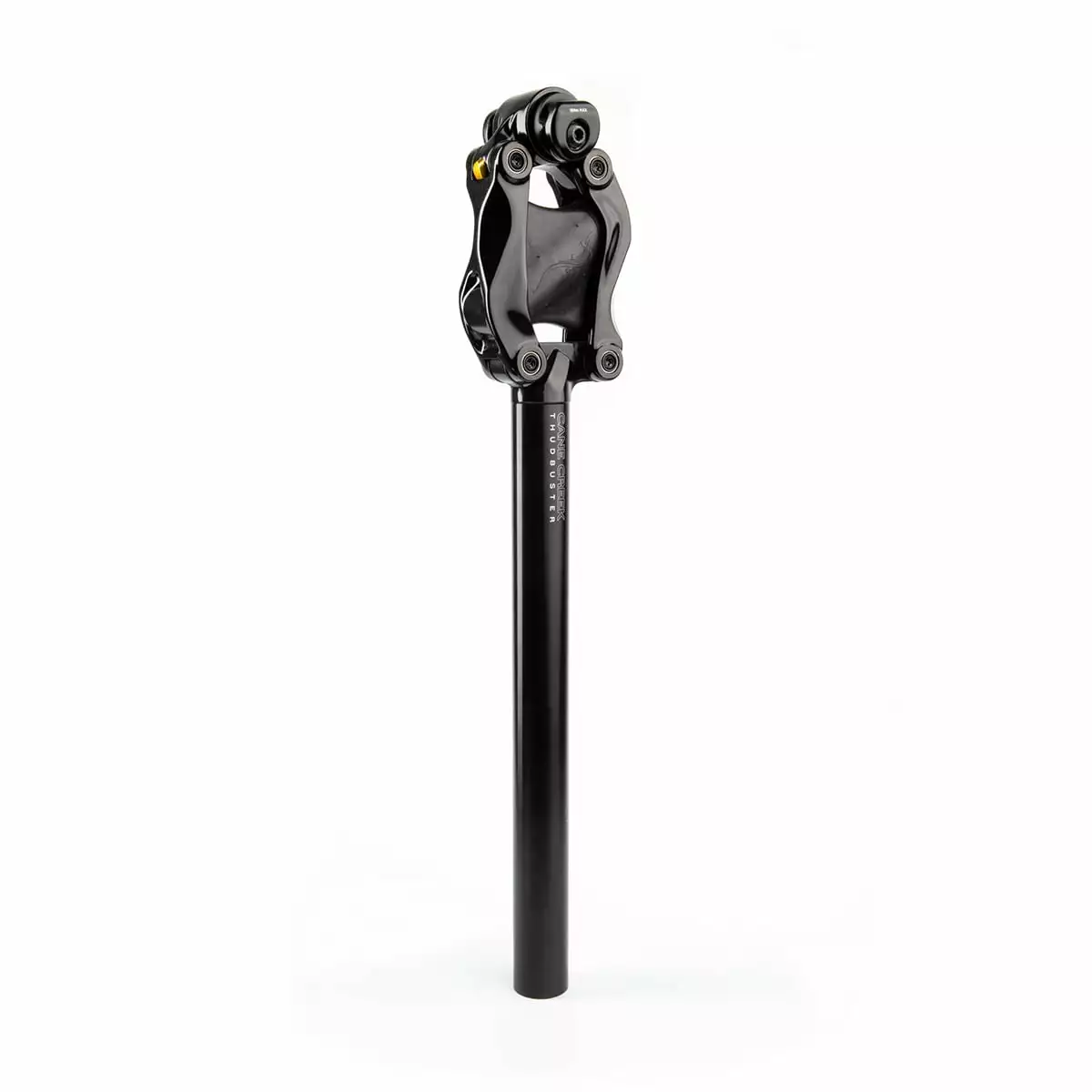

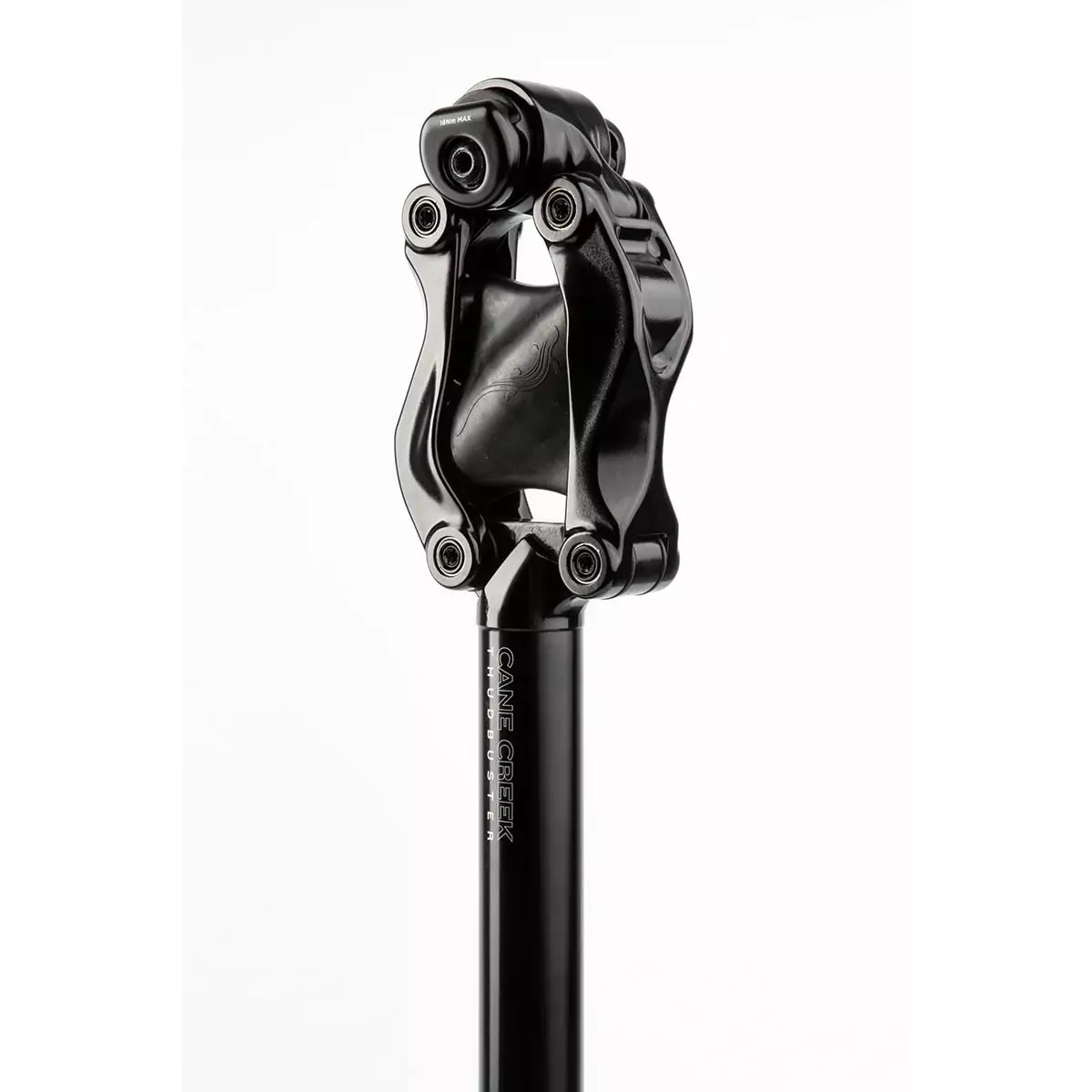

Cane Creek Thudbuster LT G4 Suspension Seatpost With Parallel Linkage

Damaged roads, potholes, roots or cobblestones – bike riding can get pretty rough some times. That’s where the Thudbuster LT suspension seatpost from Cane Creek helps.

In its 4th generation, the parallel linkage mechanism continues to be at the core of this proven seatpost with 90 mm travel. City and trekking cyclists looking for more comfort, as well as e-bike riders, will all benefit from the high level of suspension on uneven stretches.
The level of shock and comfort can be adjusted to the individual rider’s weight with the elastomers of varying hardness levels. Unlike its predecessor, this model allows for a tool-free and fast replacement. The saddle mount was also redesigned so that the clamp is secured onto the side, making it easier to install the saddle.

The suspension of the LT model (long travel) is longer than the more athletic model Thudbuster ST (short travel, product code 2303575). Depending on your needs, you can either choose the ST model for athletic comfort or the Thudbuster LT with more travel and longer progression lines, for a softer cushioning.

Details:
• Suspension seatpost with parallel linkage mechanism and 90 mm travel
• Individual adjustment for rider weight
• Tool-free replacement of elastomers
• Medium elastomer included
• Clamps on the side make mounting the saddle easier
• E-bike ready

General specs:
• Material: forged aluminium
• Material elastomer: urethane (medium, 65 kg – 90 kg rider weight)
• Travel: up to 90 mm
• Setback: 5 mm
• Rider’s weight: max. 115 kg
• Weight: approx. 750 g (Ø 31.6 mm)

Technical details Ø 27.2:
• Seat post diameter: Ø 27.2
• Total length: 390 mm
• Min. stack height: 146 mm
• Max. stack height: 290 mm
• Minimum insertion depth: 100 mm

Technical details Ø 30.9:
• Seat post diameter: Ø 30.9
• Total length: 420 mm
• Min. stack height: 146 mm
• Max. stack height: 320 mm
• Minimum insertion depth: 100 mm

Technical details Ø 31.6:
• Seat post diameter: Ø 31.6
• Total length: 420 mm
• Min. stack height: 146 mm
• Max. stack height: 320 mm
• Minimum insertion depth: 100 mm

In the box:
• 1 Cane Creek Thudbuster LT G4 Suspension Seatpost with parallel linkage
• 1 medium elastomer (65 kg – 90 kg rider weight)

Tip:
If you are often riding in wet and muddy conditions, the Cane Creek Thudglove for Thudbuster LT (product code 2273074) can protect the pivots of the seatpost.

Attention:
Do not under any circumstance use softer elastomer than is recommended for your weight!
